14.3. The "XMLmind XSL Customizer" application

14.3.1. Introduction

The "XMLmind XSL Customizer" application is a companion application embedded in XMLmind XML Editor and XMLmind XSL Utility.

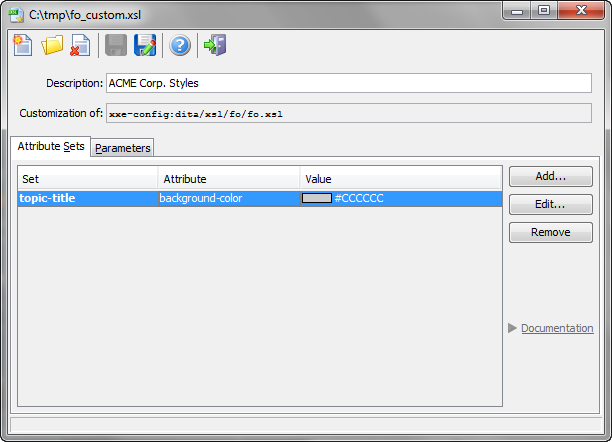

Figure 9.13. "XMLmind XSL Customizer" main window
"XMLmind XSL Customizer" main window

This application is invoked by clicking the Edit XSLT stylesheet button found in XMLmind XML Editor and XMLmind XSL Utility. It allows to modify a custom XSLT stylesheet created by clicking the Customize XSLT stylesheet button found in XMLmind XML Editor and XMLmind XSL Utility.

A custom XSLT stylesheet created this way merely imports the stock XSLT stylesheet. Example:

<?xml version="1.0" encoding="UTF-8"?>
<?stylesheet-label ACME Corp. Styles?>
<xsl:stylesheet version="2.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
  <xsl:import href="xxe-config:dita/xsl/fo/fo.xsl"/>
  <!-- REDEFINE PARAMETERS AND ATTRIBUTE-SETS HERE -->
</xsl:stylesheet>

"XMLmind XSL Customizer" is not an XSLT editor. However it allows to:

  • add or change attributes in some of the attribute sets supported by the XSLT stylesheet,

  • change the value of some of the parameters supported by the XSLT stylesheet,

and this, without prior knowledge of XSLT.

14.3.2. Reference

Toolbar buttons
New

Create a customization of an existing XSLT stylesheet. This button displays the standard file chooser dialog box allowing to choose the XSLT stylesheet for which a customization is to be created.

Open

Open a custom XSLT stylesheet previously created by clicking the New button. This button displays the standard file chooser dialog box allowing to choose the custom XSLT stylesheet to be opened.

Close

Close currently opened XSLT stylesheet.

Save

Save the changes made to currently opened XSLT stylesheet.

Save As

Save currently opened XSLT stylesheet to a different file.

Help

Display this online help.

Quit

Close "XMLmind XSL Customizer" main window.

Tip

Because "XMLmind XSL Customizer" is an (embedded) application and not a modal dialog box, you can keep it open while converting an XML document in XMLmind XML Editor or in XMLmind XSL Utility. This allows to experiment with attribute sets and parameters until you are satisfied with the result of the conversion.

Information fields about the currently opened XSLT stylesheet
Description:

Short description of the currently opened custom XSLT stylesheet. XMLmind XML Editor requires a custom XSLT stylesheet to have such description.

Customization of:

Read-only text field: URI of the stock XSLT stylesheet for which the currently opened XSLT stylesheet is a customization.

Attribute Sets tab buttons
Add

Add an attribute to one of the attribute sets supported by currently opened XSLT stylesheet.

This button displays the Add/Edit attribute dialog box. How to use this dialog box is described in the example below.

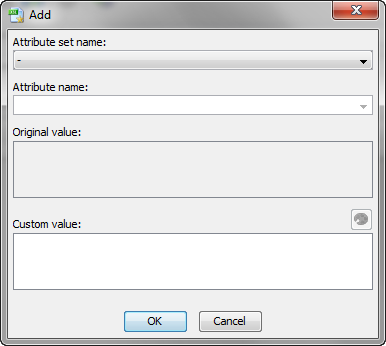

Figure 9.14. The Add/Edit attribute dialog box
The Add/Edit attribute dialog box

Note

XMLmind XSL Customizer is designed for users who cannot “program in XSLT”. These users are expected to enter literal values, not XSLT elements, in the Custom value field. For example, they are expected to enter something like:

20pt

as the value of the font-size attribute, and not something like:

<xsl:value-of select="$body.font.master * 2"/>
<xsl:text>pt</xsl:text>

However, if the user happens to know what she/he is doing and nevertheless enters one or more XML nodes in the Custom value field, then XMLmind XSL Customizer will ask her/him to confirm that this is really what she/he wants and make it work.

Edit

Modify currently selected attribute.

This button displays the Add/Edit attribute dialog box.

Remove

Remove currently selected attribute.

Documentation

Start the web browser and make it display the page containing the documentation about currently selected attribute. This button is disabled (grayed) when such documentation is not available. For now, only the DocBook XSL Stylesheets provide some documentation for their attribute sets.

Parameters tab buttons
Add

Set one of the parameters supported by currently opened XSLT stylesheet.

This button displays the Add/Edit parameter dialog box. How to use this dialog box is described in the example below.

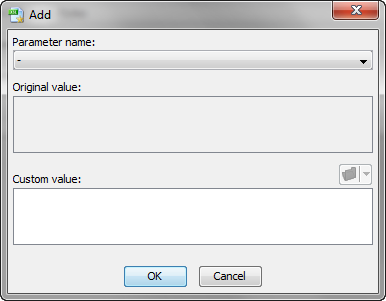

Figure 9.15. The Add/Edit parameter dialog box
The Add/Edit parameter dialog box

Note

XMLmind XSL Customizer is designed for users who cannot “program in XSLT”. These users are expected to enter literal values, not XSLT elements, in the Custom value field. For example, they are expected to enter something like:

40pt

as the value of the body.start.indent parameter, and not something like:

<xsl:value-of select="$body.font.master * 4"/>
<xsl:text>pt</xsl:text>

However, if the user happens to know what she/he is doing and nevertheless enters one or more XML nodes in the Custom value field, then XMLmind XSL Customizer will ask her/him to confirm that this is really what she/he wants and make it work.

Edit

Modify currently selected parameter.

This button displays the Add/Edit parameter dialog box.

Remove

Remove currently selected parameter.

Documentation

Start the web browser and make it display the page containing the documentation about currently selected parameter. This button is disabled (grayed) when such documentation is not available.

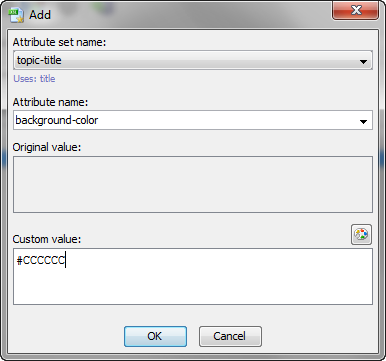

Example 9.4. When converting a DITA map to PDF, give a light gray background to all the topic titles

This is specified by adding attribute background-color=#CCCCCC to the attribute-set called topic-title.

  1. Select the Attribute Sets tab.

  2. Click Add. This displays the Add/Edit attribute dialog box.

  3. In the "Attribute set name:" combobox, select topic-title.

  4. In the "Attribute:" combobox, type "background-color" or select this commonly used attribute from the drop down list.

    The "Original value:" read-only text field remains empty, indicating that the stock XSLT stylesheet does not specify attribute topic-title/background-color.

  5. In the "Custom value:" field, type "#CCCCCC".

    Or more simply, click "Edit style attribute" and use the background-color editor to specify a light gray color.

  6. Click OK to close the dialog box.

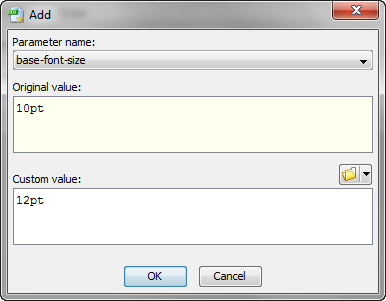

Example 9.5. When converting a DITA map to PDF, use a 12pt base font size

This is specified by setting parameter base-font-size to 12pt.

  1. Select the Parameters tab.

  2. Click Add. This displays the Add/Edit parameter dialog box.

  3. In the "Parameter name:" combobox, select base-font-size.

    The "Original value:" read-only text field changes to "10pt", which is the value of parameter base-font-size specified in the stock XSLT stylesheet.

  4. In the "Custom value:" field, type "12pt".

  5. Click OK to close the dialog box.
