C. Using Antenna House Formatter as your XSL-FO processor

  1. In the Transform tab, add an XSLT stylesheet parameter specifying that you are using Antenna House Formatter.

    Conversion NameParameter NameParameter Value
    ditaToXXXfoProcessorAHF
    dbToXXXaxf.extensions1
    db5toXXXaxf.extensions1
    xhtmlToXXXfoProcessorAHF

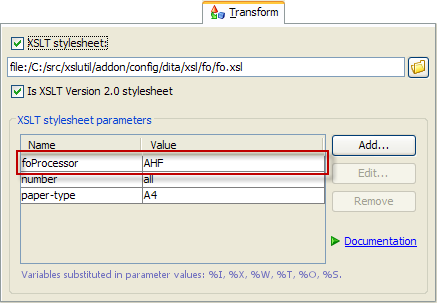

    Figure C.1. DitaToXXX example: add the foProcessor XSLT stylesheet parameter

    DitaToXXX example: add the foProcessor XSLT stylesheet parameter

  2. In the Process tab, check the "Execute process command" checkbox and specify a command-line resembling to:

    "C:\Program Files\Antenna House\AHFormatterV6\AHFCmd.exe" -x 3 -p @PDF -d "%T" -o "%O"

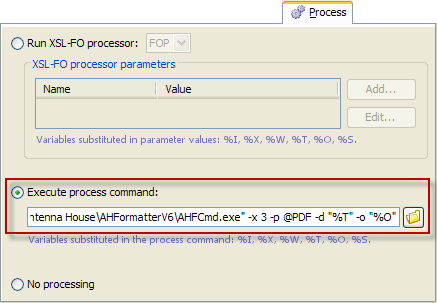

    Figure C.2. DitaToXXX example: specify the command-line of Antenna House Formatter

    DitaToXXX example: specify the command-line of Antenna House Formatter
